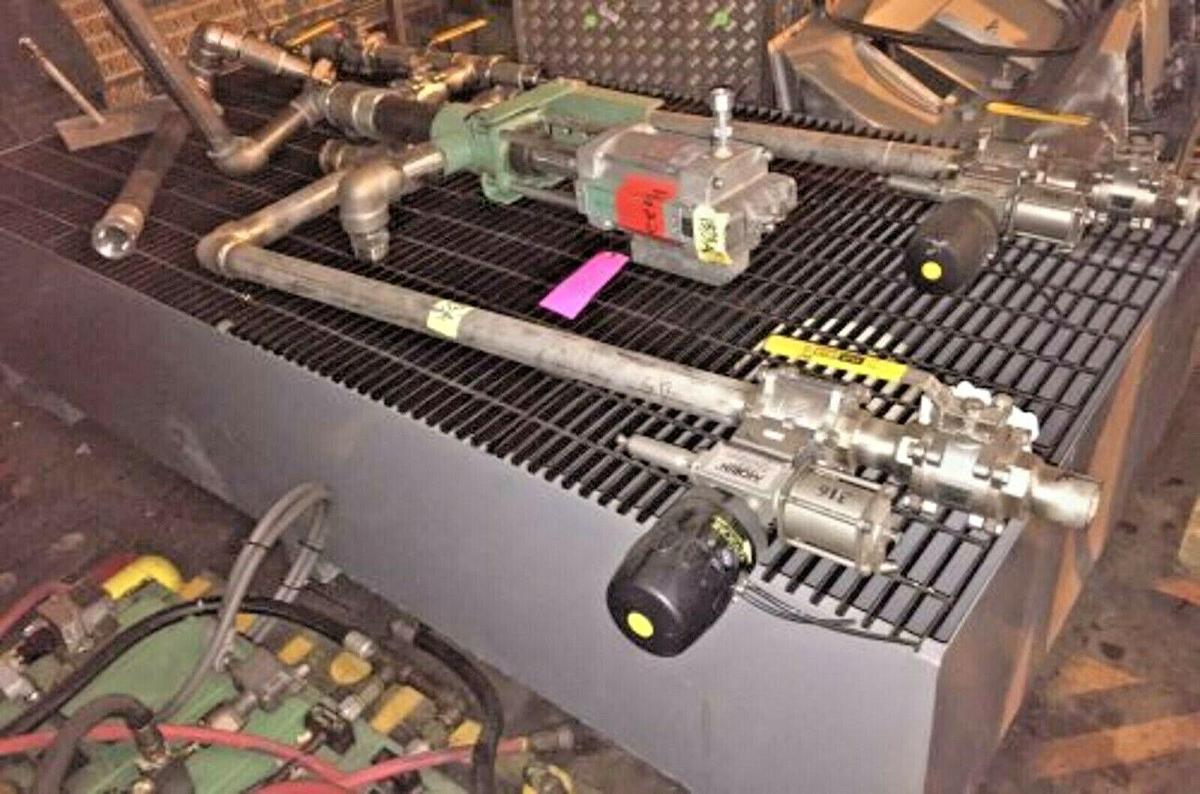

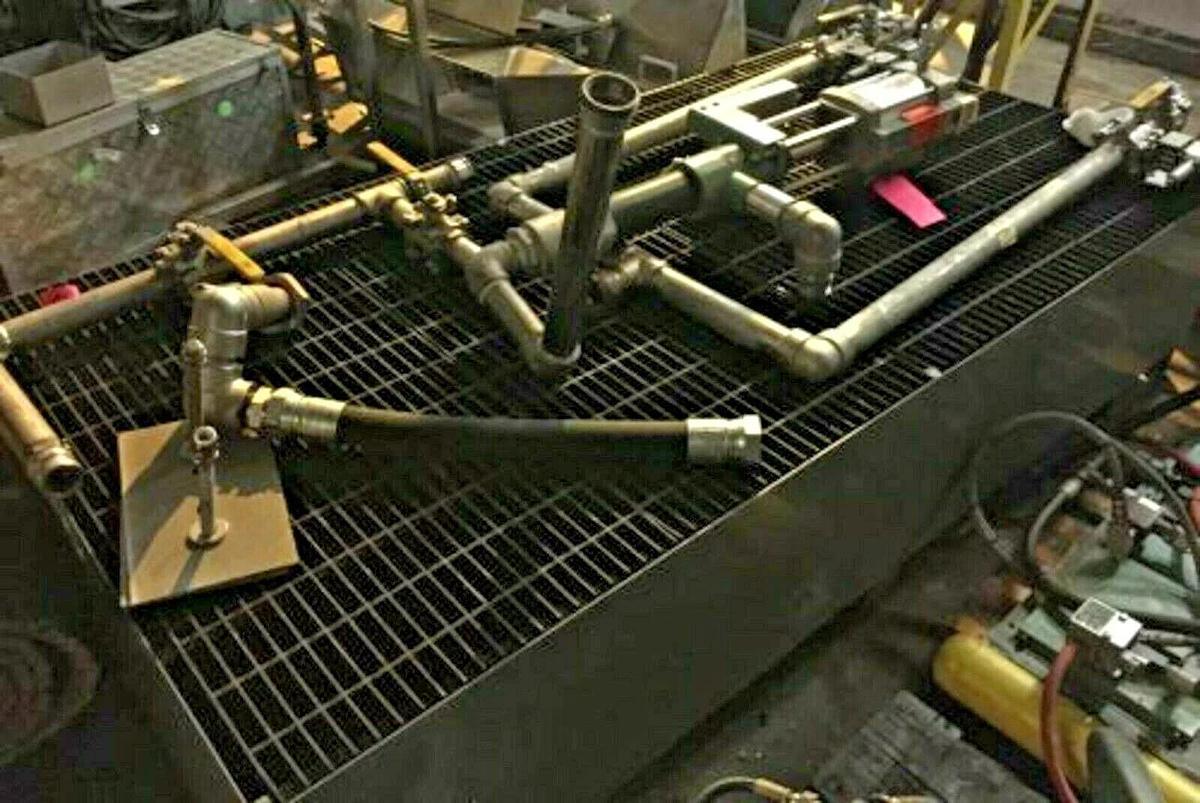

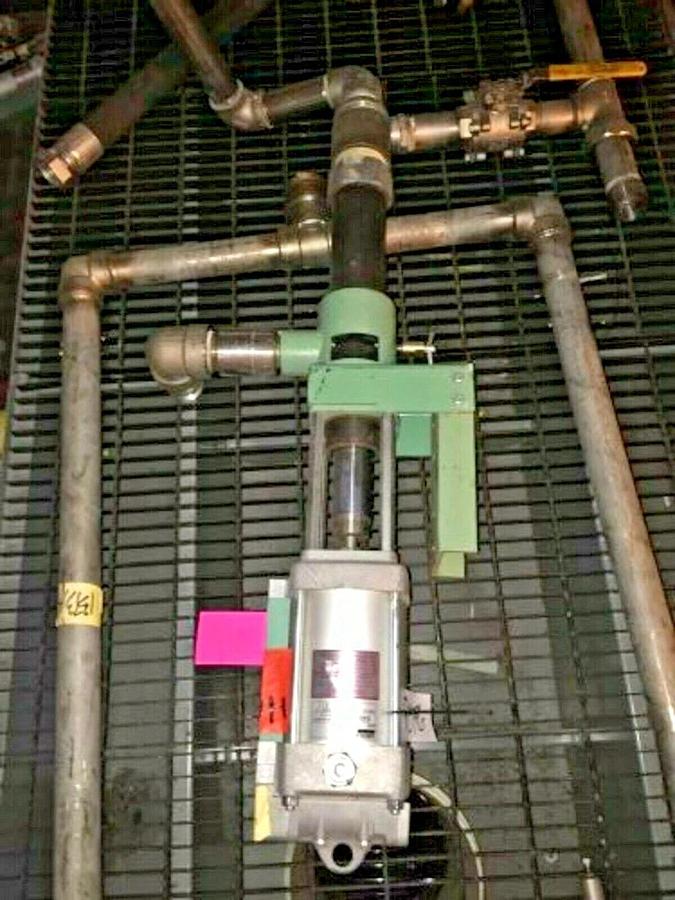

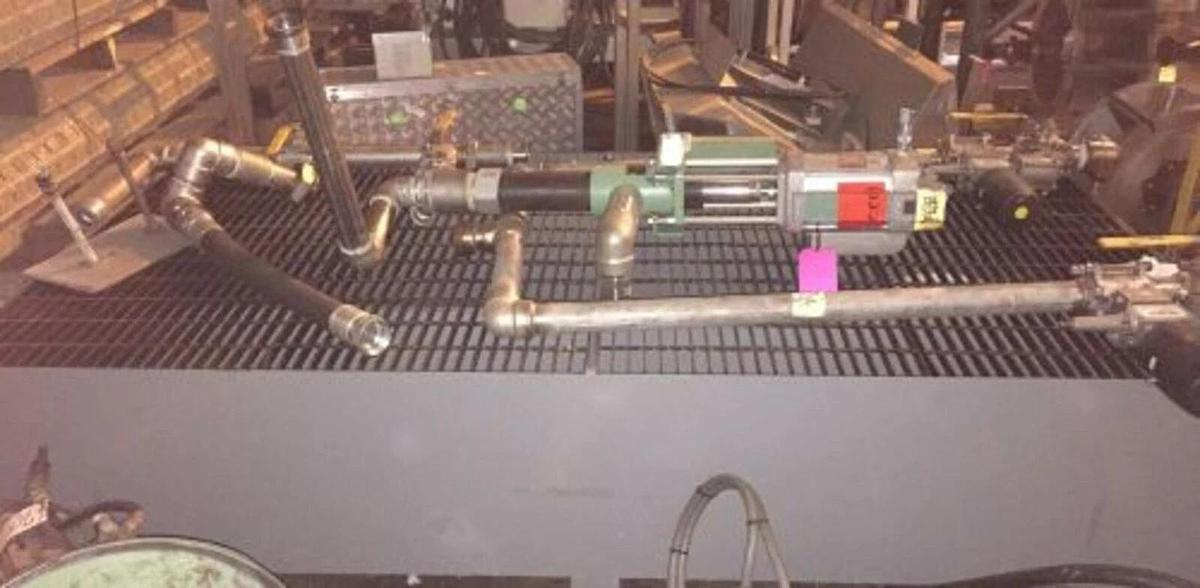

LINCOLN #84806 AIRMotor with pump and (2)actuated valves

LINCOLN #84806 AIRMotor with pump and (2)actuated valves

$3,150 (USD)

Location:Carson City, NV

or
Call +14158277832

Description

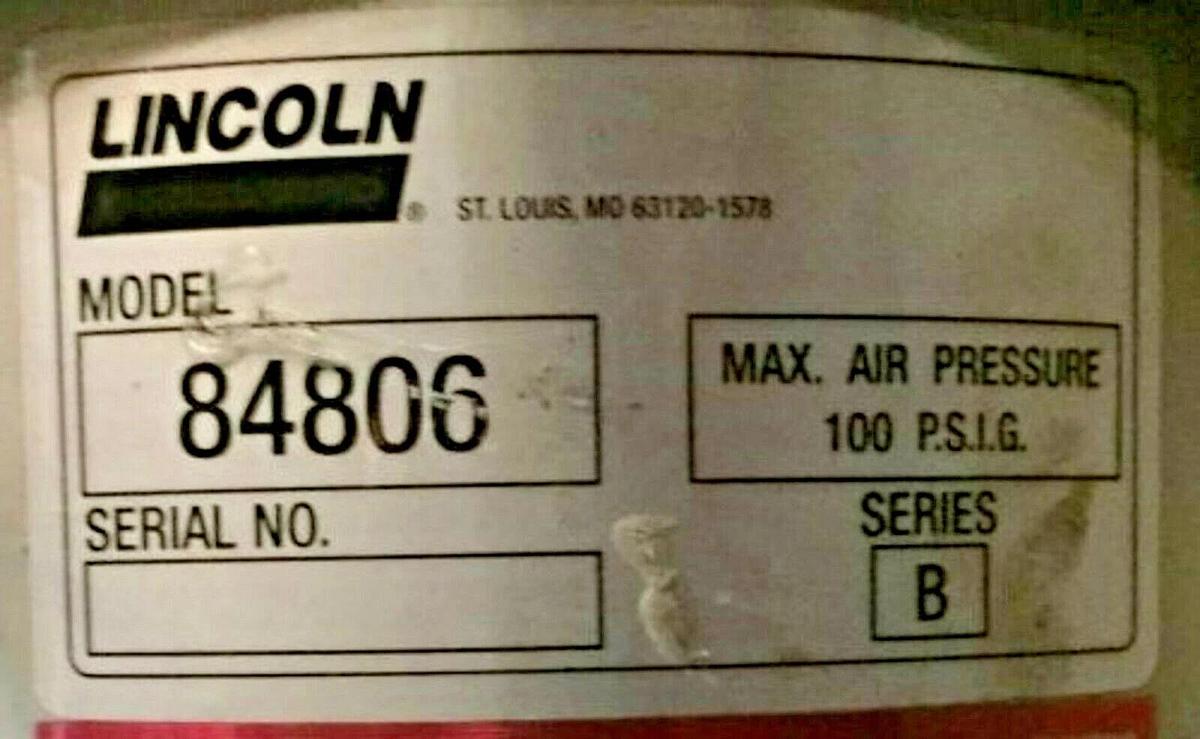

Lincoln 2" airmotor model 84806 -------- Includes pump and (2)Actuated VAlves Series B, maximum air pressure 100 PSIG PRODUCT SPECIFICATIONS: Lincoln Part No.: 84806 Cylinder Diameter in. (mm): 6(152) Effective Piston Area IN2. (cm): 28(182) Operating Pressure Range PSIG (bar): 30-100 (2-7) Operating Temperature Range °C (°F): (-34- +93) Min. ID. of Air Supply in. (mm): 1/2 (12) Air Inlet: 3/4â NPTF Air Cons. @ 100 PSIG (7 bar) SCF/Cycle (L(N)/Cycle): 1.6 (46) Max. Recom. Speed CPM: 75 Stroke Length in. (mm): 6 (152) Weight lb. (kg): 34 (15.5) Seals Material: Buna-N and Teflon Seals used with Power Valve Spool (Item 13) and Relay Valve (Item 17) see attached PDF Dimension A in. (mm): 9-1/4 (235) Dimension B in. (mm): 7-314 (197) Dimension C in. (mm): 22-3/4 (577) Pipes to be removed for shipping Valve specs and better photos soon C arson City, NV 89706
Show All

Specifications

ManufacturerLincoln
Model84806
ConditionUsed
Country of OriginUnited States
Power SourcePneumatic
Custom BundleNo
Modified ItemNo
