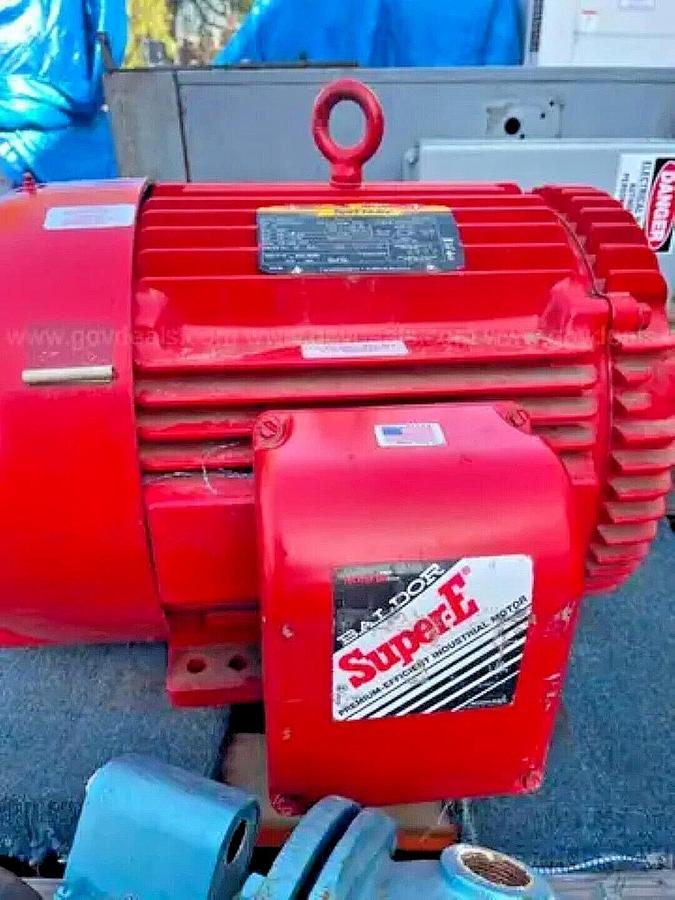

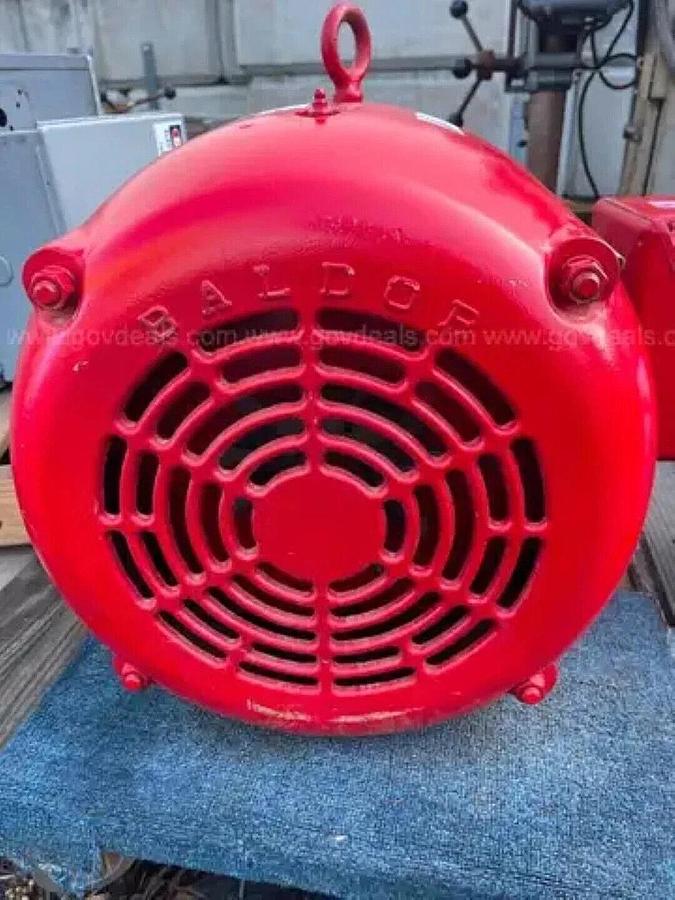

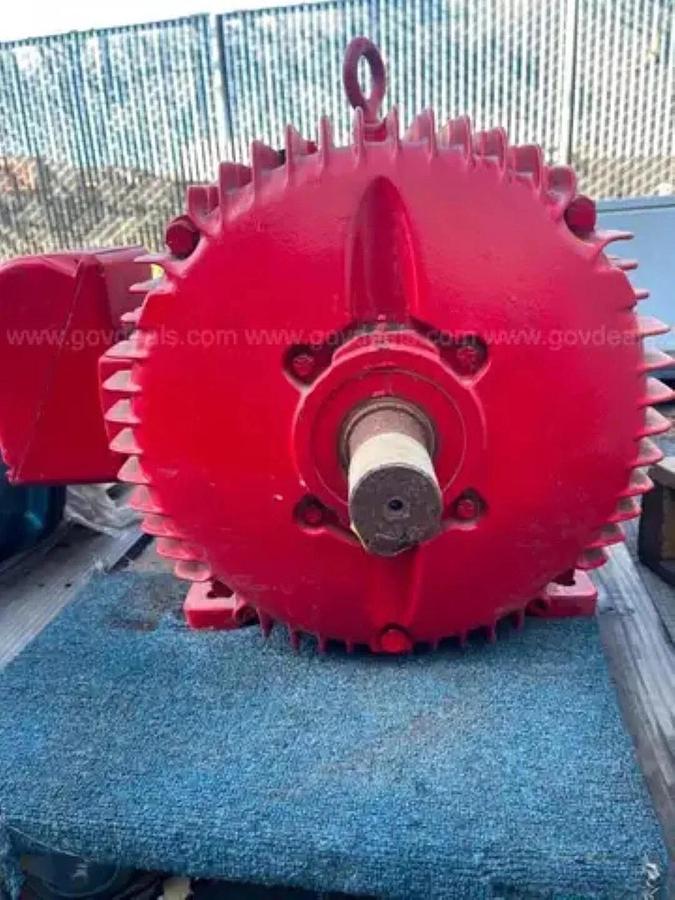

50hp Baldor Super-E Motor 230/460v TEFC 326TS 3600rpm -Rebuilt- Reno,NV

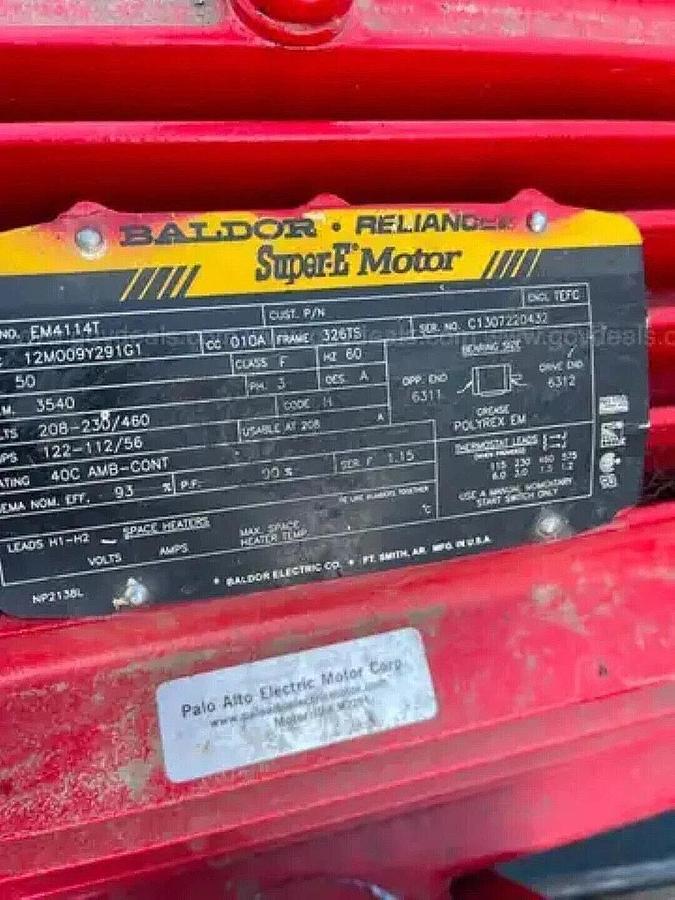

Baldor Super E Motor EM4114T 50hp 3540rpm 3 Ï 60hz 326TS 1252M TEFC F Ship Weight: 586 lb + Pallet UPC 781568103432 Enclosure TEFC Frame 326TS Frame Material Iron Frequency 60.00 Hz Motor Letter Type Output @ Frequency 50.000 HP @ 60 HZ Phase 3 Synchronous Speed @ Frequency 3600 RPM @ 60 HZ Voltage @ Frequency 460.0 V @ 60 HZ 230.0 V @ 60 HZ XP Class and Group None XP Division Not Applicable UR NEMA PREMIUM CSA EEV Ambient Temperature 40 °C Auxillary Box Lead Termination None Base Indicator Rigid Bearing Grease Type Polyrex EM (-20F +300F) Blower None Current @ Voltage: 122.000 A @ 208.0 V 56.000 A @ 460.0 V 112.000 A @ 230.0 V Design Code A Drip Cover No Drip Cover Duty Rating CONT Efficiency @ 100% Load 93.0 % Bearing Not Electrically Isolated Feedback Device NO FEEDBACK High Voltage Full Load Amps 56.0 a Front Face Code Standard Front Shaft Indicator None Heater Indicator No Heater Insulation Class F Inverter Code Inverter Ready KVA Code H Lifting Lugs Standard Lifting Lugs Locked Bearing Indicator Locked Bearing Motor Lead Exit Ko Box Motor Lead Termination Flying Leads Motor Lead Quantity/Wire Size 9 @ 8 AWG Motor Type 1252M Mounting Arrangement F1 Number of Poles 2 Overall Length 28.84 IN Power Factor 90 Product Family General Purpose Pulley End Bearing Type Ball Pulley Face Code Standard Pulley Shaft Indicator Standard Rodent Screen None Service Factor 1.15 Shaft Diameter 1.875 IN Shaft Extension Location Pulley End Shaft Ground Indicator No Shaft Grounding Shaft Rotation Reversible Shaft Slinger Indicator Shaft Slinger Speed 3540 rpm Speed Code Single Speed Motor Standards NEMA Starting Method Direct on line Thermal Device - Bearing None Thermal Device - Winding None Vibration Sensor Indicator No Vibration Sensor Winding Thermal 1 None Winding Thermal 2 None LTL Freight Pickup Info: HighLakeSurplus is a commercial facility w/ forklifts Open 24/7 Carson City, NV 89706
