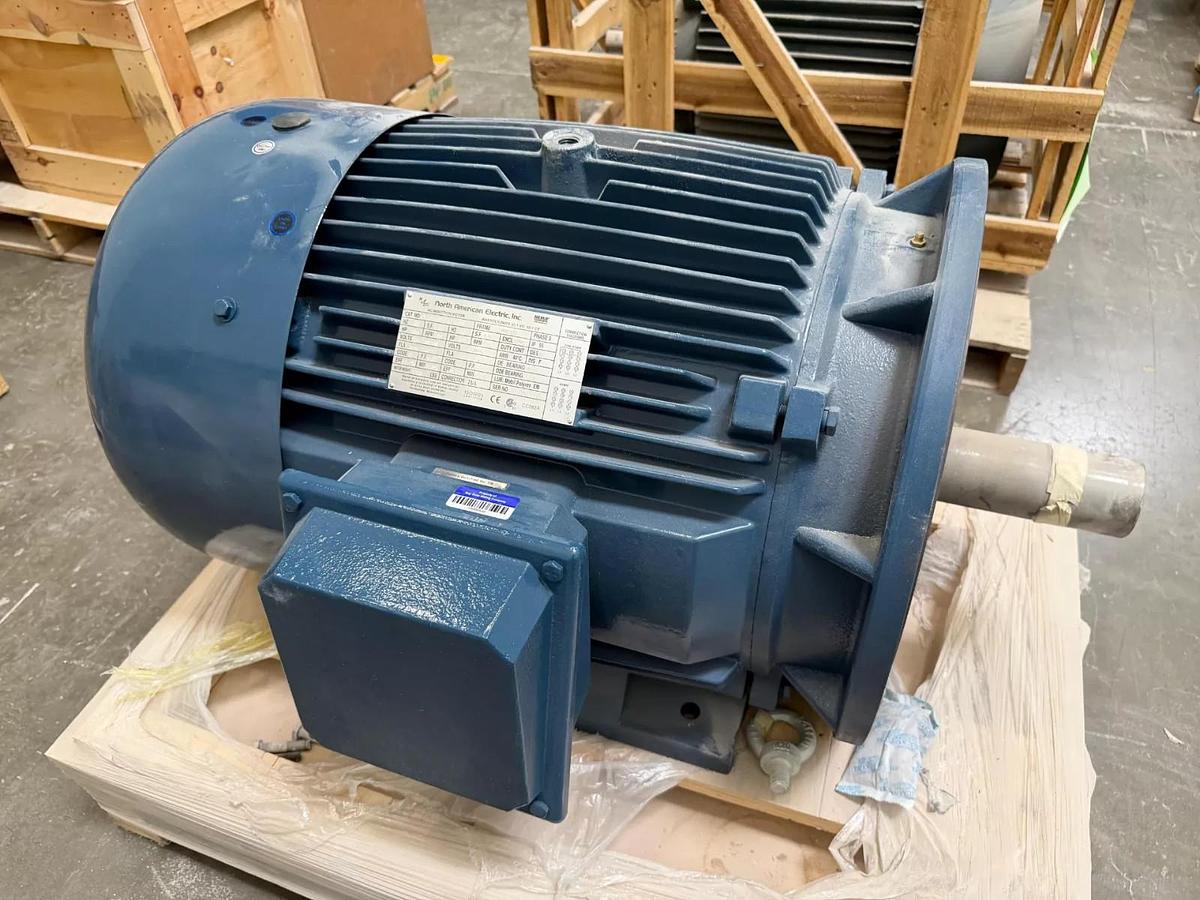

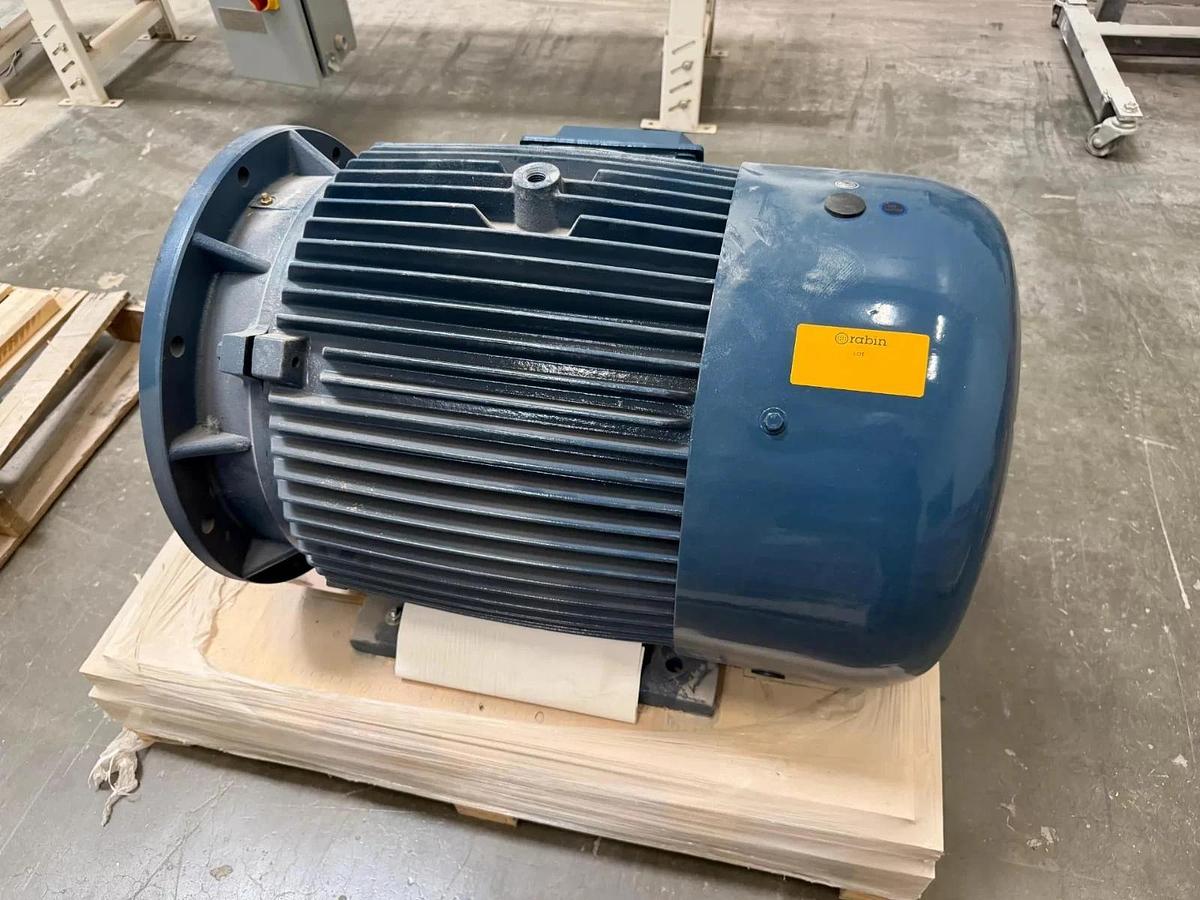

100 hp North American Electric Electric Motor 1800 rpm 405TD Frame - Reno, NV
100 hp North American Electric Electric Motor 1800 rpm 405TD Frame - Reno, NV
$4,300 (USD)
Location:
or
Call +14158277832
Description
NEW !!

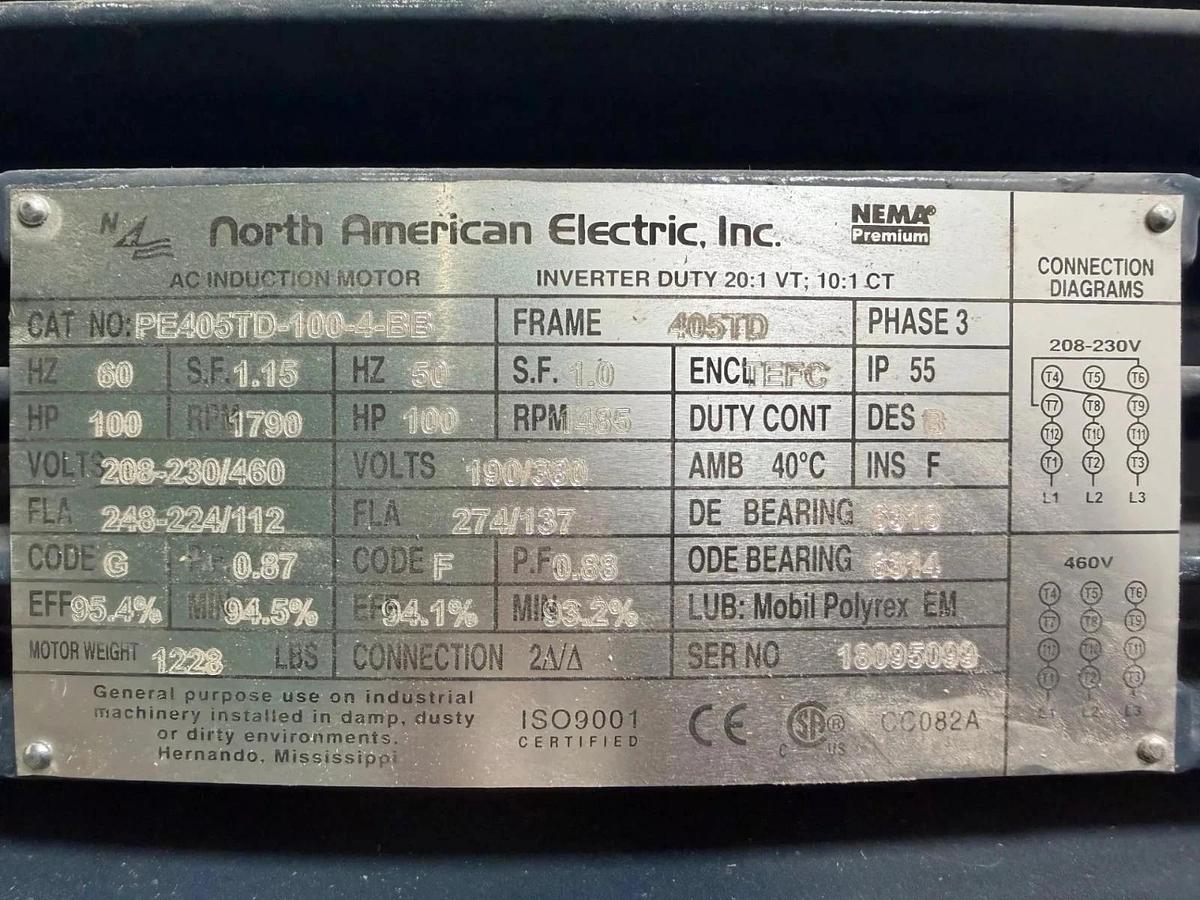

North American Electric Inc electric motor
cat : PE405TD-100-4-BB
s/n
18095099
100hp
1790rpm
405TD frame
208-230/460v
60hz
 3ph
1.15 S.F.TEFCGen PurposeCast IronPrem Eff. Inverter Duty==================================================
Found online:
General Information to be verified!
Item Name
General Purpose Electric Motor
Design & Construction
Frame Type
405T
KVA Code
G
Performance Details
Speed Rating
1800 rpm
Full Load Efficiency
95.4%
1/2 Load Efficiency
95.2%
3/4 Load Efficiency
95.4%
Torque Rating
295.2 lb-ft
Electrical Properties
Full Load Ampere
247.7 A
Full Load Power Factor
87%
1/2 Load Power Factor
77%
HP Rating
100 HP
Locked Rotor Ampere
725 A
3/4 Load Power Factor
84%
Physical Properties
Dimensions
38 Inch L x 23.7 Inch H
Frame Size
405
Shaft Diameter
2.875 Inch
Shaft Length
7.25 Inch
Weight
1058 lb
Specifications
| Manufacturer | North American |
| Model | PE405TD-100-4-BB |
| Condition | New |
| Inverter/Vector Duty Rating | Inverter Duty |
| Rated Load (HP) | 100 |
| IEC Frame Size | 405TD |
| AC Frequency Rating | 60 Hz |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Mounting Type | Foot-Mounted |
| Reversible/Non-Reversible | Reversible |
| Current Type | AC |
| Service Factor | 1.15 |
| Nominal Rated Input Voltage | 460 V |
| AC Phase | Three Phase |
| NEMA Frame Suffix | T |
| Country of Origin | United States |
Additional Features
