Siemens Simotics 150kw Explosion Proof Electric Servo Motor - West Coast
Siemens Simotics 150kw Explosion Proof Electric Servo Motor - West Coast
$18,500 (USD)
Location:Carson City, NV
or
Call +14158277832
Description

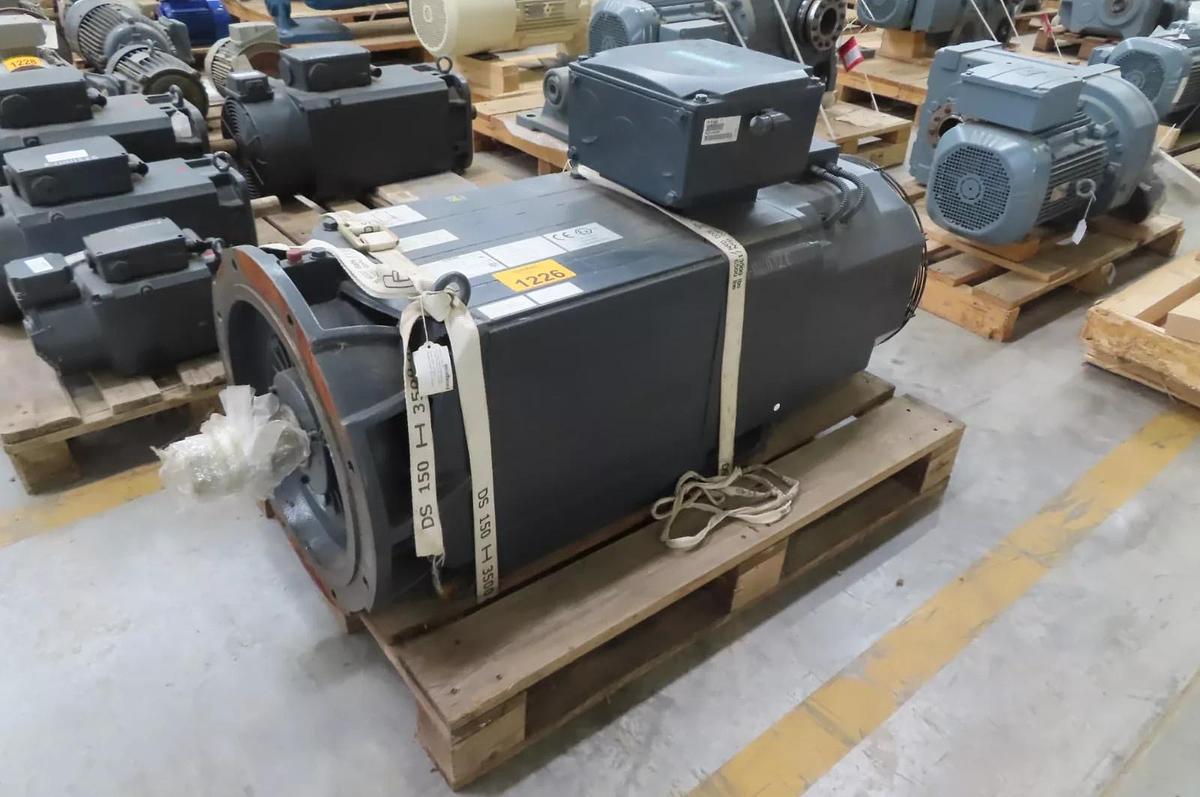

Siemens 150kw/184hp explosion protected motor
2000 RPM
800kg
======================================
Info I found online:

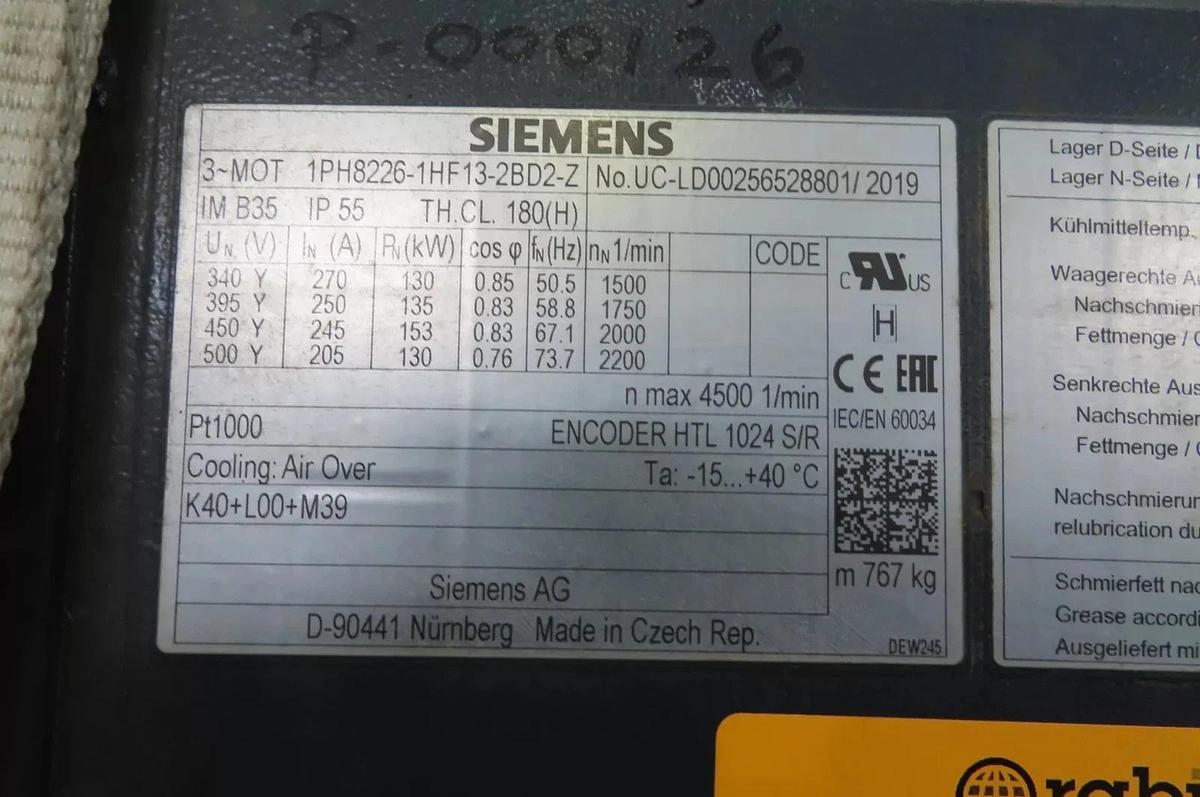

Siemens
1PH8226-1HF13-2BD2-Z
K40+L00+M39
IM B35
IP 55
SIMOTICS M compact asynchronous motor
1500 r/min,
130 kW, 828 Nm,
270 A,
340 V
1750 r/min,
135 kW, 737 Nm,
250 A,
395 V
2000 r/min,
153 kW, 731 Nm,
254 A, 450 V
forced ventilation direction of air flow NDE-->DE IP55 degree of protection Incremental encoder HTL 1024 S/R (encoder HTL1024S/R)
With temperature sensor Pt1000 DESIGN IM B35 WITH FLANGE A550 (IM V35)
SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE D-END SIGNAL CONNECTION RIGHT K40: regreasing system DE and NDE L00: next larger terminal box (1x B7322--> 1x B7422 1x B7422--> 1x B7700) M39: version for hazardous areas zone 22 (according to EN 50281)
Specifications
| Manufacturer | Siemens |
| Model | 1PH8226-1HF13-2BD2-Z |
| Condition | New |
| Inverter/Vector Duty Rating | Inverter Duty |
| Rated Load (HP) | 184 |
| Current Type | AC |
| Special Motor Construction | Explosion-Proof Motor |
| AC Frequency Rating | 50/60 Hz |
| AC Motor Type | Induction/Asynchronous |
| AC Phase | Three Phase |
| Country of Origin | Czech Republic |
Additional Features
Please note that HighLakeSurplus is a reseller of surplus and secondhand industrial machinery and equipment. We are not technicians and do not claim any technical expertise on the items listed. The manufacturer remains the best source for specifications, operating instructions and technical support. Most items are sold used and may be untested unless otherwise stated. Any visible damage will be accurately represented in the listing photos provided. We strongly advise all customers to review the photos carefully and seek any additional information they require prior to purchase.
